Hermes Lab Manager

Multi-profile AI orchestration for digital forensics & penetration testing — two labs, one machine, zero context pollution · View on GitHub

HARD ROUTING RULE

The default profile never runs lab tools, starts containers, or checks targets. All lab work is dispatched to worker profiles:

Pentest → hermes -z "<prompt>" --profile pentest
Forensics → hermes -z "<prompt>" --profile forensics
Report generation, template rendering, case management → forensics profile only

Dispatch fails? Report the failure. Do not fall back to direct execution. The vaults make this structural: templates and scripts live behind LUKS — locked vault = ENOENT.

Quick Demo

One command checks both labs. Forensics: 20 checks (12 tools + 8 env) across 3 runtimes. Pentest: 14 services including Docker containers, WireGuard VPN, and LUKS vault.

$ bash check-labs

=== PENTEST ===
=== Results: 14 passed, 0 failed ===
✓ All services operational — ready for engagement

=== FORENSICS ===
=== Results: 20 passed, 0 failed ===
✓ All runtimes operational — ready for investigation

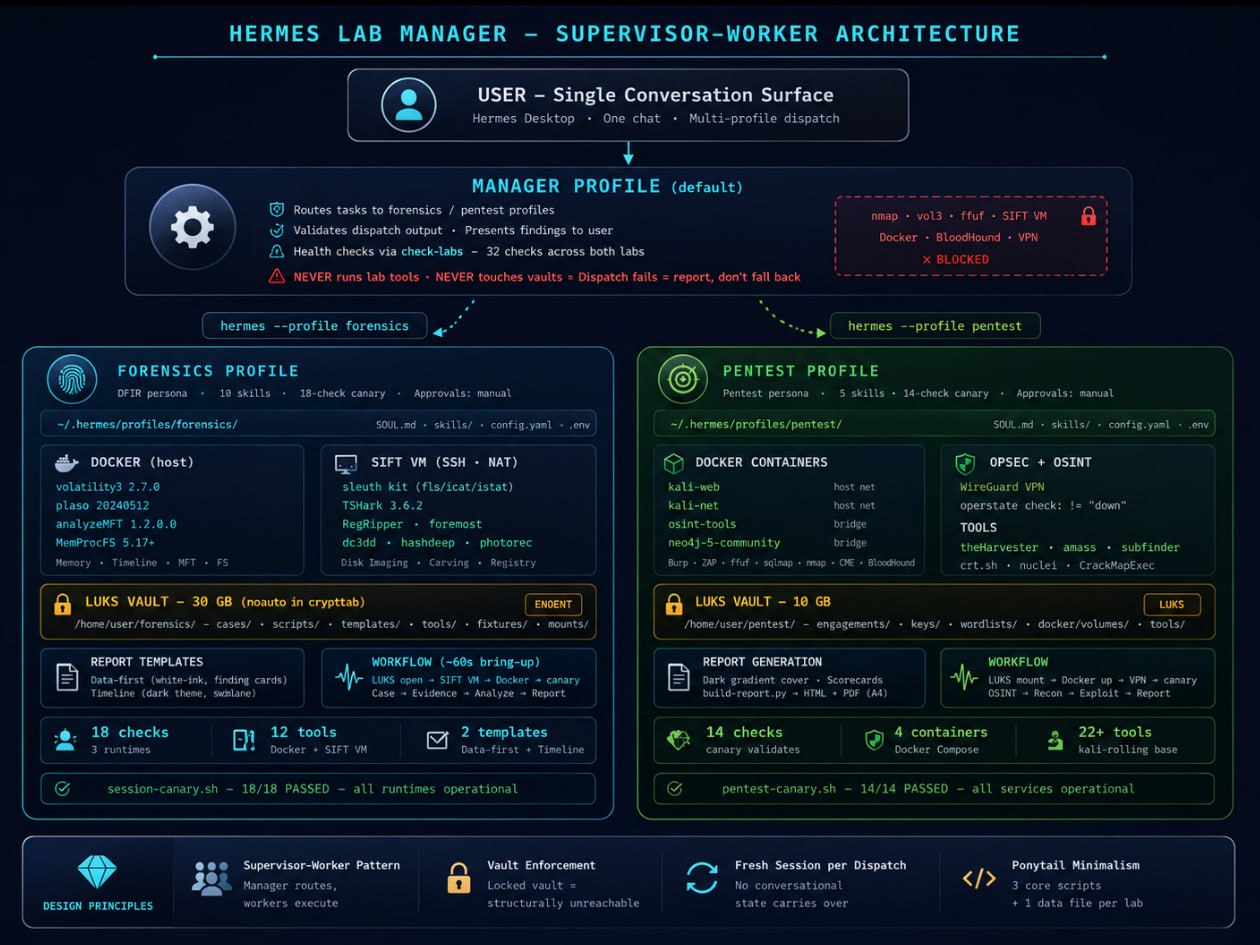

Hermes Lab Manager Architecture — Supervisor-Worker pattern

Hardware & Prerequisites

i7-11800HCPU (8C/16T)

30 GBRAM

468 GBNVMe SSD

Ubuntu 24.04+RECENT KERNEL

Component	Version	Purpose
Hermes Agent	`v0.17.0`	AI orchestration — profiles, one-shot dispatch, skills
Docker	latest stable	Container runtime for volatility3, plaso, MFT, pentest tools
VMware Workstation	`17.x`	SIFT Workstation VM (forensics native tools)
LUKS / cryptsetup	`2.7+`	Encrypted vaults for evidence and engagement data
WireGuard	`1.x`	VPN for pentest OPSEC ()
WeasyPrint	`62+`	HTML → PDF report generation
gh CLI	`2.x`	GitHub Pages deployment, repo management
Python	`3.14`	Report generation, screenshot automation, helper scripts

Profile System

Three Hermes profiles, each with its own persona (SOUL.md), skills, memory, config, and .env. Profiles sandbox $HOME — always use absolute paths.

Profile	Directory	Role	Tool Access
`default`	`~/.hermes/`	Manager — routes tasks, health checks, validates output	Terminal, file, web, browser (NO forensics/pentest tools)
`forensics`	`~/.hermes/profiles/forensics/`	DFIR worker — memory, disk, network forensics	Docker (vol3, plaso, MFT), MemProcFS, SIFT VM SSH
`pentest`	`~/.hermes/profiles/pentest/`	Pentest worker — recon, exploitation, reporting	Docker (kali-web, kali-net, osint, neo4j), VPN

Creating a worker profile

hermes profile create forensics
hermes profile create pentest

Then copy ~/.hermes/.env to each profile directory so they have API keys.

Config example (forensics)

# ~/.hermes/profiles/forensics/config.yaml
agent:
  max_turns: 120
  tool_use_enforcement: true
terminal:
  backend: local          # MUST be local — profile needs host file access
  timeout: 600
model:
  default:
  provider:
memory:
  memory_enabled: true
approvals:
  mode: manual            # Never YOLO on evidence

LUKS Vault System

Both labs use LUKS-encrypted loop devices for at-rest encryption. Keyfiles stored at /home/user/.forensics-keyfile and /home/user/.pentest-keyfile (chmod 600). Forensics uses noauto in crypttab (manual mount only). Pentest vault does not survive reboot.

Vault	File	Size	Mount	Contents
Forensics	`/home/user/forensics.img`	30 GB	`/home/user/forensics/`	Cases, scripts, templates, tool catalog, evidence (read-only)
Pentest	`/home/user/pentest-vault.img`	10 GB	`/home/user/pentest/`	Engagements, keys, wordlists, Docker volumes, tool data

Design decision: Forensics vault uses noauto in /etc/crypttab. The vault only mounts when forensics-up.sh runs. When locked, templates and scripts are ENOENT — the default profile structurally cannot touch them. This is enforcement-by-design, not enforcement-by-policy.

Keyfile setup (one-time)

echo -n '<password>' > /home/user/.forensics-keyfile
chmod 600 /home/user/.forensics-keyfile

Manual mount (if automount fails)

sudo cryptsetup luksOpen --key-file /home/user/.forensics-keyfile \
    /home/user/forensics.img forensics_crypt
sudo mount /dev/mapper/forensics_crypt /home/user/forensics

Forensics Lab

Tool Inventory — 3 Runtimes, 20 Checks (12 tools + 8 env)

Runtime	Tool	Version	Access
Docker (host)	volatility3	`2.7.0`	`forensics-vol3.sh CASE plugin`
Docker (host)	plaso	`20240512`	Timeline generation
Docker (host)	analyzeMFT	`1.2.0.0`	MFT parsing
Docker (host)	MemProcFS	`5.17+`	Memory dump → virtual filesystem mount
SIFT VM (SSH)	Sleuth Kit	`4.12+`	`sift-exec.sh "fls/icat/istat ..."`
SIFT VM (SSH)	TShark	`3.6.2`	Network capture analysis
SIFT VM (SSH)	RegRipper	`3.0+`	Registry hive parsing
SIFT VM (SSH)	foremost	`1.5.7`	File carving
SIFT VM (SSH)	dc3dd	`7.3+`	Forensic imaging with hashing
SIFT VM (SSH)	hashdeep	`4.4`	Known-good hash comparison
SIFT VM (SSH)	photorec	`7.2+`	Photo/file recovery
SIFT VM (SSH)	ddrescue	`1.27+`	Damaged disk recovery

SIFT VM

SIFT Workstation VM runs on VMware Workstation with NAT (vmnet8) networking — static IP , SSH on port 22. Bridged networking over WiFi causes DHCP lease expiration and IP drift between sessions — NAT is the fix. The SSH wrapper script (sift-exec.sh) handles the absolute key path requirement (profiles sandbox $HOME so ~/.ssh/ resolves wrong). Cold boot: vmrun -T ws start ~/vmware/SIFT/SIFT.vmx nogui (25–45s for SSH).

Bring-up (one command, ~60s)

bash /home/user/forensics/scripts/forensics-up.sh
# Opens LUKS → starts SIFT VM → waits for SSH → checks Docker → runs canary → reports status

New case (one command)

CASE_ID=$(bash /home/user/forensics/scripts/forensics-case.sh "Case Description")

Analysis workflow

# Register evidence (hash → verify → chmod → evidence.json → audit)
bash /home/user/forensics/scripts/forensics-register.sh $CASE ~/dump.mem "source_url" "sha256"

# Run volatility3
bash /home/user/forensics/scripts/forensics-vol3.sh $CASE windows.pslist.PsList
bash /home/user/forensics/scripts/forensics-vol3.sh $CASE windows.netscan.NetScan

# Mount MemProcFS
bash /home/user/forensics/scripts/forensics-mount.sh $CASE

# Record findings
bash /home/user/forensics/scripts/forensics-find.sh $CASE "Title" HIGH "tool" "cmd" "EVID" "raw" "finding"

# Screenshots of raw tool output
python3 /home/user/forensics/scripts/forensics-screenshots.py /home/user/forensics/cases/$CASE

# Generate reports (data-first + timeline)
bash /home/user/forensics/scripts/forensics-report.sh $CASE --html
bash /home/user/forensics/scripts/forensics-report.sh $CASE --pdf

Report templates

Template	Style	Use Case
`data-first-report.html`	White + ink, 01–10 numbered sections, sidebar nav, finding cards, data-table timeline, 15px exec summary	Corporate delivery, print/PDF, legal review, client handoff
`timeline-report.html`	Dark theme, visual swimlane timeline, color-coded dots	Interactive viewing, GitHub Pages demo

Design rules (user-enforced): Zero emoji. Colored CSS squares for section markers. Monospace text tags [MALWARE] [C2] for timeline events. Prominent exec summary with gradient callout + thick blue left border. Appendix references PNG screenshots, not inlined text. Reports generated from structured JSON (findings.json + evidence.json + timeline.json), not hand-written.

Shutdown

bash /home/user/forensics/scripts/forensics-down.sh
# Unmounts MemProcFS → stops SIFT VM → locks LUKS

Pentest Lab

Docker Containers

Service	Image	Network	Purpose
`kali-web`	kalilinux/kali-rolling	host	Web app testing (Burp, ZAP, ffuf, sqlmap)
`kali-net`	kalilinux/kali-rolling	host	Network scanning (nmap, masscan, crackmapexec)
`osint-tools`	kalilinux/kali-rolling	bridge	OSINT (theHarvester, amass, subfinder)
`neo4j`	neo4j:5-community	bridge	BloodHound graph database

Host networking required: nmap raw sockets, crackmapexec SMB, and responder need network_mode: host. Docker Desktop users: set up a Linux VM with bridged networking.

Vault layout

/home/user/pentest/
├── engagements/        # Per-engagement: findings, reports, screenshots
├── keys/               # SSH keys, API tokens
├── wordlists/          # SecLists, custom
├── tools/              # Standalone tool binaries
└── docker/
    └── volumes/        # neo4j data, persistent tool storage

Bring-up

bash /home/user/pentest-repo/scripts/pentest-up.sh
# Mounts LUKS vault → starts Docker containers → verifies VPN → runs canary

VPN (WireGuard)

WireGuard interface wg0 connects to . Detection pitfall: /sys/class/net/wg0/operstate reports "unknown", not "up". Check with != "down" — any non-down state is active.

Report generation

python3 /home/user/pentest-repo/scripts/build-report.py \
    --engagement-dir /home/user/pentest/engagements/<name> \
    --output-pdf report.pdf --output-html report.html

Dark gradient cover · 4-category scorecards · findings heatmap · inline evidence screenshots · business-first descriptions · observed controls with values · remediation checklist · A4 portrait print-native

Dispatch System

The dispatch mechanism is Hermes Agent's one-shot mode (-z / --oneshot). Each call boots the profile fresh, loads its SOUL + skills + memory, executes the task, prints the result, and exits. No conversational state carries between dispatches.

Foreground dispatch (~60s — canaries, single-phase tasks)

hermes -z "Run canary and report pass/fail." --profile forensics

Background dispatch (8–12 min — full engagements)

Foreground hermes -z has a 600-second hard limit. Full pentest engagements and multi-phase forensics analyses WILL time out. Always use background mode with notify_on_complete=true for full engagements.

# In terminal tool: background=true, notify_on_complete=true
hermes -z "Run full pentest engagement against example.com.
  Scope: example.com and *.example.com. Run canary first.
  Execute all 7 workflow phases including report generation.
  Report the PDF path when done." --profile pentest

Prompt construction checklist

Element	Example	Why
Absolute paths	`/home/user/Downloads/dump.mem`	Profiles sandbox `$HOME`
Canary first	`Run canary first, report degraded tools`	Catch tool failures before evidence analysis
Scope boundaries	`Scope: example.com and *.example.com`	Prevent scope creep
Output request	`Report the PDF path when done`	Manager knows where to find artifacts
Brevity	Keep it short	Worker profile skills fill in the workflow

Health Check

bash /home/user/.hermes/scripts/check-labs

=== PENTEST ===
=== Results: 14 passed, 0 failed ===
✓ All services operational — ready for engagement

=== FORENSICS ===
=== Results: 20 passed, 0 failed ===
✓ All runtimes operational — ready for investigation

One command, both canaries. Forensics checks 3 runtimes (Docker, SIFT VM, MemProcFS) across 20 checks (12 tools + 8 env). Pentest checks 14 services (Docker, VPN, LUKS, tools). Degraded tools are marked for triage-only; the agent handles recovery reasoning.

Dispatch verification (first-time setup)

# Verify CLI one-shot mode
hermes --help | grep '\-z'

# Test basic dispatch
hermes -z "Say the hostname and exit." --profile forensics
hermes -z "Say the hostname and exit." --profile pentest

# Full canary dispatch
hermes -z "Run the session canary and report pass/fail." --profile forensics
hermes -z "Run the pentest canary and report pass/fail." --profile pentest

Folder Layout

Path	What	Gate
`/home/user/.hermes/profiles/forensics/`	Forensics profile — SOUL, skills, config, .env	None
`/home/user/.hermes/profiles/pentest/`	Pentest profile — SOUL, skills, config, .env	None
`/home/user/.hermes/scripts/check-labs`	5-line health check — runs both canaries	None
`/home/user/.hermes/skills/devops/lab-manager/`	Manager skill — routing rules, dispatch, pitfalls	None
`/home/user/forensics/`	LUKS mount — cases, scripts, templates, tools	Keyfile
`/home/user/forensics/cases/INC-YYYY-MMDD-NNNN/`	Per-case: evidence, raw/, reports/, findings.json, audit/	Vault mount
`/home/user/forensics/scripts/`	Automation: canary, sift-exec, up/down, report, vol3, find, case, register, mount, screenshots	Vault mount
`/home/user/forensics/templates/`	Report templates (data-first + timeline)	Vault mount
`/home/user/forensics/tools/tool-catalog.yaml`	Tool registry — versions, entrypoints, pitfalls	Vault mount
`/home/user/forensics/fixtures/`	Known-good test fixtures for canary validation	Vault mount
`/home/user/pentest/`	LUKS mount — engagements, keys, wordlists, Docker volumes	Keyfile
`/home/user/pentest-repo/`	Scripts and skills — git-tracked, outside vault	None
`/home/user/pentest-repo/scripts/pentest-canary.sh`	14 checks	None
`/home/user/pentest-repo/scripts/pentest-up.sh`	Container + VPN startup	None
`/home/user/pentest-repo/scripts/pentest-down.sh`	Graceful shutdown	None
`/home/user/pentest-repo/scripts/build-report.py`	Automated pentest report generation	None
`/home/user/pentest/docker/`	Docker Compose + per-container build contexts	Vault mount
`/home/user/vmware/SIFT/`	SIFT Workstation VM files	None
`/home/user/hermes-forensics-lab/`	Public repo — README, sample reports, docs	None
`/home/user/hermes-lab-management-dashboard/`	Public repo — boot flow, tray launcher, architecture diagram	None

Replicating This Setup

Step 1: Prerequisites

# Ubuntu 24.04+ with Docker, VMware, Hermes Agent
sudo apt install -y docker.io docker-compose-v2 wireguard-tools cryptsetup pandoc weasyprint
pip install psutil       # for desktop widget

Step 2: Clone the lab repos

git clone https://github.com/jayelbotvibe-web/hermes-forensics-lab.git ~/hermes-forensics-lab
git clone https://github.com/jayelbotvibe-web/hermes-pentest-lab.git ~/pentest-repo

Step 3: Create LUKS vaults

# Forensics vault (30 GB)
dd if=/dev/zero of=/home/user/forensics.img bs=1M count=30720
sudo cryptsetup luksFormat /home/user/forensics.img
sudo cryptsetup luksOpen /home/user/forensics.img forensics_crypt
sudo mkfs.ext4 /dev/mapper/forensics_crypt
sudo mount /dev/mapper/forensics_crypt /home/user/forensics
sudo chown $USER:$USER /home/user/forensics

# Pentest vault (10 GB)
dd if=/dev/zero of=/home/user/pentest-vault.img bs=1M count=10240
sudo cryptsetup luksFormat /home/user/pentest-vault.img
sudo cryptsetup luksOpen /home/user/pentest-vault.img pentest-vault
sudo mkfs.ext4 /dev/mapper/pentest-vault
sudo mount /dev/mapper/pentest-vault /home/user/pentest
sudo chown $USER:$USER /home/user/pentest

Step 4: Set up keyfiles (passwordless mount)

echo -n '<password>' > /home/user/.forensics-keyfile
echo -n '<password>' > /home/user/.pentest-keyfile
chmod 600 /home/user/.forensics-keyfile /home/user/.pentest-keyfile

# Add forensics to crypttab (noauto — manual mount only)
echo "forensics_crypt /home/user/forensics.img /home/user/.forensics-keyfile luks,noauto" | \
  sudo tee -a /etc/crypttab

Step 5: Set up SIFT VM

# Download SIFT OVA from SANS Portal, import into VMware
# Configure NAT networking (vmnet8) with static IP
# SSH key copy: ssh-copy-id user@

Step 6: Build Docker images

# Forensics tools
docker build -t forensics-volatility3:2.7.0 ~/hermes-forensics-lab/tools/volatility/
docker build -t forensics-plaso:20240512 ~/hermes-forensics-lab/tools/plaso/
docker build -t forensics-mft-tools:1.2.0.0 ~/hermes-forensics-lab/tools/mft-tools/

# Pentest tools
cd ~/pentest-repo/docker && docker compose build

Step 7: Create Hermes profiles

hermes profile create forensics
hermes profile create pentest

# Copy API keys
cp ~/.hermes/.env ~/.hermes/profiles/forensics/.env
cp ~/.hermes/.env ~/.hermes/profiles/pentest/.env

Step 8: Install lab-manager skill

mkdir -p ~/.hermes/skills/devops/lab-manager
# Copy SKILL.md from this repo or the hermes-lab-manager repo

Step 9: Install health check

cat > ~/.hermes/scripts/check-labs << 'EOF'
#!/bin/bash
set -e
echo "=== PENTEST ===" && bash /home/user/pentest-repo/scripts/pentest-canary.sh 2>&1 | tail -3
echo "" && echo "=== FORENSICS ===" && bash /home/user/forensics/scripts/session-canary.sh 2>&1 | tail -3
EOF
chmod +x ~/.hermes/scripts/check-labs

Step 10: Verify

bash ~/.hermes/scripts/check-labs
hermes -z "Run canary and report pass/fail." --profile forensics
hermes -z "Run canary and report pass/fail." --profile pentest

Daily Workflow

# 1. Check both labs
bash ~/.hermes/scripts/check-labs

# 2. Route a forensic task
hermes -z "Run canary. Analyze network capture at /home/user/Downloads/capture.pcap.
  Use tshark on SIFT VM. Open a case, register evidence, identify IOCs.
  Generate data-first report with screenshots. Report summary when done."
  --profile forensics

# 3. Route a pentest task
hermes -z "Run canary. Passive OSINT on example.com. Zero packets.
  Use theHarvester, crt.sh. Return subdomains, emails, exposed tech.
  No active scanning." --profile pentest

↑ Back to top
